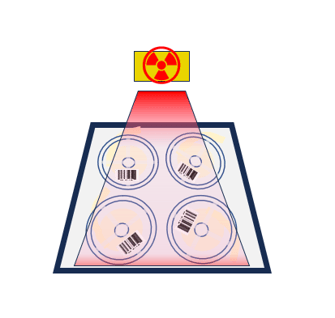

Significantly reduced quantity
counting time
No need to manually read barcodes/QR codes,
automatic scanning after putting them in the device!
Capable of counting 4 sets of 7" reels simultaneously
in 6-10 seconds!

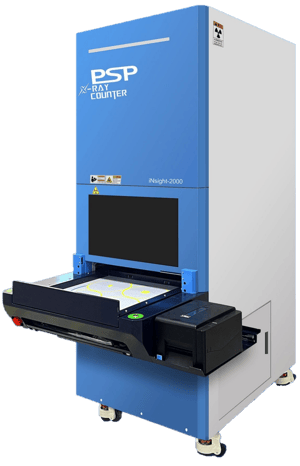

X-ray Electronic Components Counter
iNsight-2000 Plus
Capable of counting up to 4 7-inch reels
simultaneously in 6 to 10 seconds!
Low cost, high performance, and easy
operation will contribute to your improvement of electronic parts management work
efficiency.
Features of iNsight-2000 Plus
Easy operation

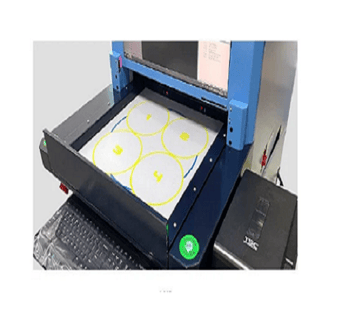

Easy operation by simply placing a reel in the tray and pressing a button!
Automatic bar code verification function included.
User-friendly convenient
functions

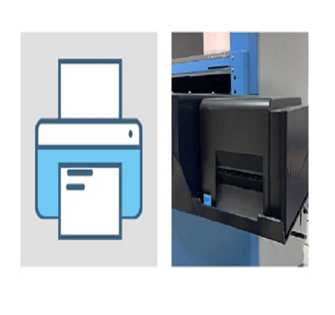

Automatically detects reel pickup and prints quantity
labels automatically.
Prevents label application errors and forgetting to
apply labels.

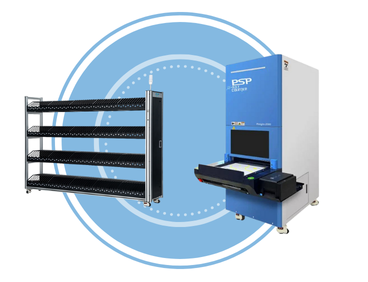

Automatic updating of inventory
information in conjunction with Smart Reel Rack
By linking iNsight-2000 and Smart Reel Rack to the
system,
The information measured by iNsight-2000 is updated
in real time on the server of Smart Reel Rack.
Low cost, high performance, and easy operation contribute
to more efficient electronic parts management!
Comparison with manual counts
| Manual counting | iNsight-2000 Plus | |
| Number of people |
5 people | 1 person |
| Counting Time | 80 seconds / tray | 9-12 seconds / 4 trays |
| Number of trays per shift |
1,800 | 19,200 |
| Packaging | Needs to be disassembled | No disassembly required to maintain material ESD |
| Data Accuracy | Manual transcription error, material placement affects the quantity. |
Quantity automatic writing system, materials can be placed at will. |
Detailed specifications of iNsight-2000 Plus
| iNsight-2000 Plus | |
| X-ray source type | airtight |
| Counting speed | 6 seconds/reel |
| Counting Accuracy | 99,99%(0603mm) |
| Maximum reel size | 415mm |
| Maximum reel height |
80mm |
| Image processing accuracy | 139μm |
| Image Size | 430*430mm |
| Machine Size | 950*1460*1960mm |
| Machine Weight | 450kg |
| Power supply | AC100-240V(50-60Hz) |
| Max. power consumption | 1200W |
| Radiation Safety Testing | ＜1μSV/H |
Please watch the operation manual video here.
We offer optimal one-stop + total solutions, along with technical support, to help customers solve their inventory management issues.
